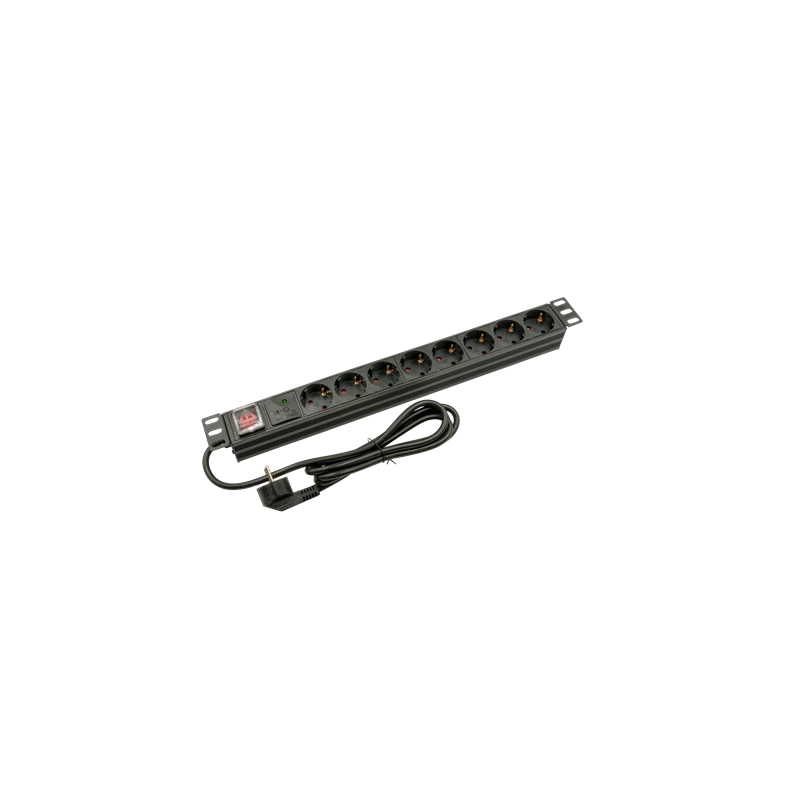

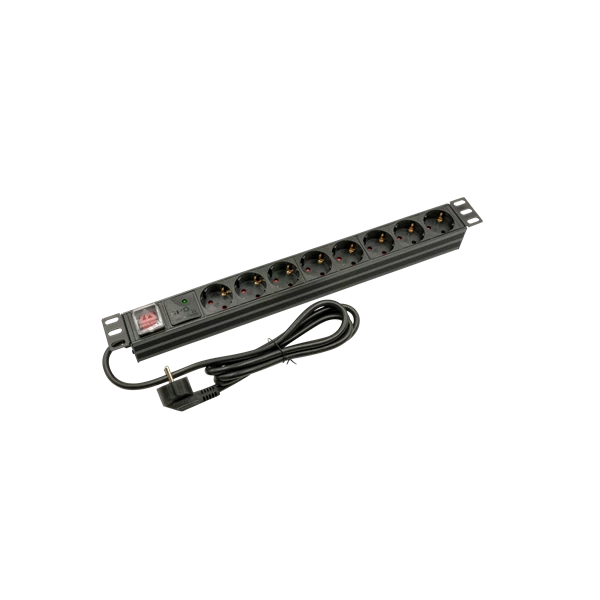

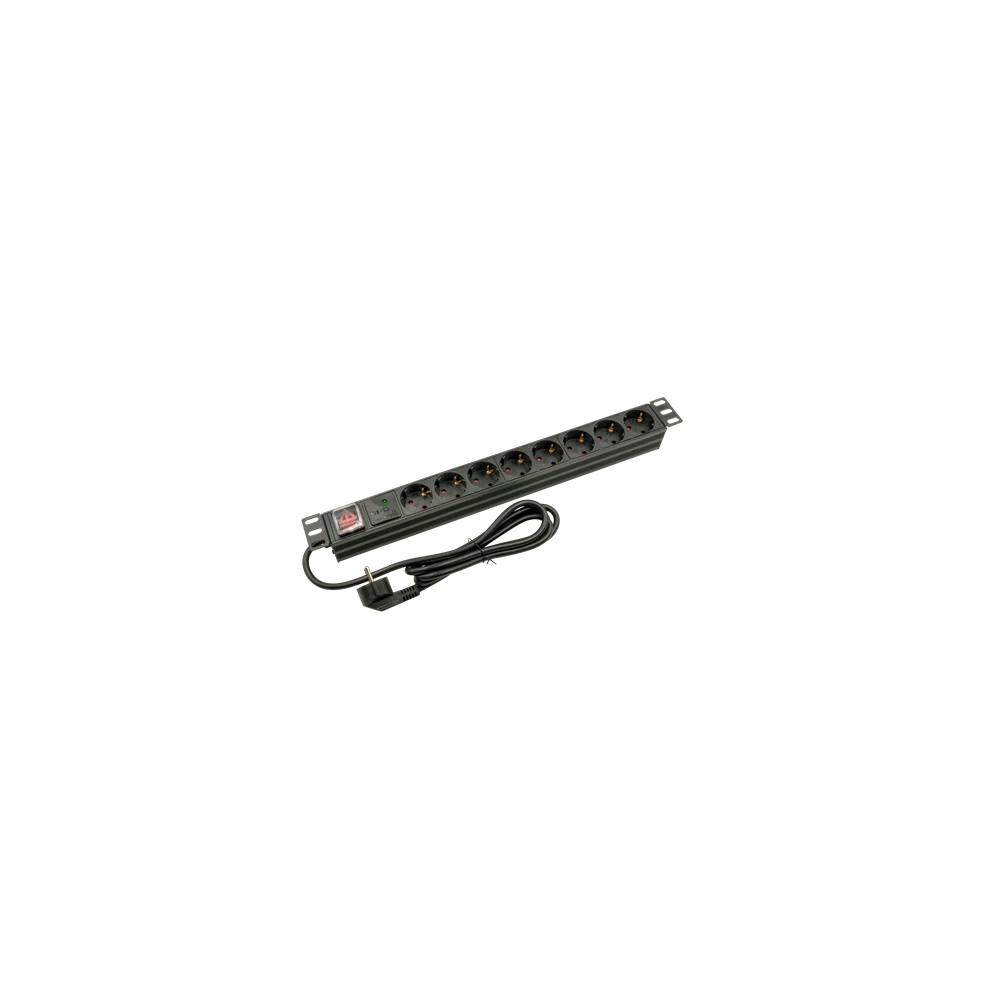

WALISEC PDU-EU08S Hálózati Elosztó

Electrical Properties

Rated Voltage

250 VAC

Rated Current

16 A

Output Power

≤ 4000 W

Leakage Current

< 0.75 mA

Surge Protector

YES

Physical Properties

Power Cord

1.8 m, 3G 1.5 mm² with AC plug (DIN 49441)

Outlet

8x Outlets (DIN 49440)

Switch

Dual-Pole Switch (Simultaneously Disconnects Live and Neutral Lines)

Housing Material

Aluminium Extrusion + Flame Retardant Plastic

Internal Connection Material

Solid Copper Bar

Environment

Operating Temperature

-20°C to 50°C

Operating Humidity

RH 10% to 96% (non-condensing)

Storage Temperature

-40°C to 80°C

Storage Humidity

RH 5% to 96% (non-condensing)

General

Installation

Rack Mount, Standard 19-inch

Dimension

485 (19") x 45 (1U) x 45 mm (WxHxD)

Net Weight

800 g

Gross Weight

950 g (with 4 sets of M6 screws and captive nuts)
