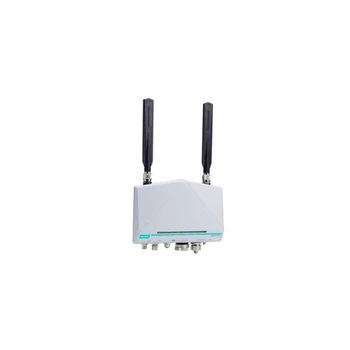

MOXA AWK-4131-M12-EU-T 802.11n Access Point, M12/N-Type, EU band, -40 to 75°C
841.292 Ft
(662.435 Ft + ÁFA)
| Cikkszám: | AWK-4131-M12-EU-T |
| Gyártó: | MOXA |
| Elérhetőség: | Érdeklődjön! Ár/készlet eltérés! |
| • WLAN Interface Standards IEEE 802.11a/b/g/n for Wireless LANIEEE 802.11i for Wireless SecurityIEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X)IEEE 802.3ab for 1000BaseTIEEE 802.3af for Power-over-EthernetIEEE 802.1D for Spanning Tree ProtocolIEEE 802.1w for Rapid STPIEEE 802.1Q for VLAN Spread Spectrum and Modulation (typical) • DSSS with DBPSK, DQPSK, CCK• OFDM with BPSK, QPSK, 16QAM, 64QAM• 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps• 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps• 802.11n: 64QAM @ 300 bps to BPSK @ 6.5 Mbps (multiple rates supported) Operating Channels (central frequency) US: 2.412 to 2.462 GHz (11 channels)5.18 to 5.24 GHz (4 channels) EU: 2.412 to 2.472 GHz (13 channels)5.18 to 5.24 GHz (4 channels)JP:2.412 to 2.472 GHz (13 channels, OFDM)2.412 to 2.484 GHz (14 channels, DSSS)5.18 to 5.24 GHz (4 channels for W52) Security • SSID broadcast enable/disable• Firewall for MAC/IP/Protocol/Port-based filtering• 64-bit and 128-bit WEP encryption, WPA/WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES) Transmission Rates 802.11b: 1, 2, 5.5, 11 Mbps802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11n: 6.5 to 300 Mbps (multiple rates supported) TX Transmit Power 802.11b:1 to 11 Mbps: Typ. 18 dBm (± 1.5 dBm)802.11g:6 to 24 Mbps: Typ. 18 dBm (± 1.5 dBm)36 to 48 Mbps: Typ. 17 dBm (± 1.5 dBm)54 Mbps: Typ. 15 dBm (± 1.5 dBm)802.11a:6 to 24 Mbps: Typ. 17 dBm (± 1.5 dBm)36 to 48 Mbps: Typ. 16 dBm (± 1.5 dBm)54 Mbps: Typ. 14 dBm (± 1.5 dBm) RX Sensitivity 802.11b:-92 dBm @ 1 Mbps, -90 dBm @ 2 Mbps, -88 dBm @ 5.5 Mbps, -84 dBm @ 11 Mbps802.11g:-87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82 dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72 dBm @ 48 Mbps, -70 dBm @ 54 Mbps802.11a:-87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82 dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72 dBm @ 48 Mbps, -70 dBm @ 54 Mbps TX Transmit Power MIMO (per connector) 802.11a/n (20/40 MHz):MCS15 20 MHz: Typ. 13 dBm (± 1.5 dBm)MCS15 40 MHz: Typ. 12 dBm (± 1.5 dBm)802.11g/n (20 MHz):MCS15 20 MHz: Typ. 14 dBm (± 1.5 dBm) RX Sensitivity MIMO 802.11a/n:-68 dBm @ MCS15 40 MHz, -69 dBm @ MCS15 20 MHz,-70 dBm @ MCS7 40 MHz, -71 dBm @ MCS7 20 MHz802.11g/n:-69 dBm @ MCS15 20 MHz, -71 dBm @ MCS7 20 MHz • Protocol Support General Protocols Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP AP-only Protocols ARP, BOOTP, DHCP, dynamic VLAN-Tags for 802.1X-Clients, STP/RSTP (IEEE 802.1D/w) • Interface Default Antennas 2 dual-band omni-directional antennas, 5 dBi at 2.4 GHz, 2 dBi at 5 GHz, N-type (male) Connector for External Antennas N-type (female) Fiber Ports 1, 1000Base SFP slot M12 Ports 1, 10/100/1000BaseT(X), auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (M12 female type) Console Port RS-232 (waterproof RJ45-type) LED Indicators PWR, FAULT, STATE, WLAN, LAN Alarm Contact (digital output, M12 male connector) 1 relay output with current carrying capacity of 1 A @ 24 VDC Digital Inputs (M12 connector, male) 2 electrically isolated inputs• +13 to +30 V for state “1”• +3 to -30 V for state “0”• Max. input current: 8 mA • Physical Characteristics Housing Metal, IP68 protection Weight 1.8 kg Dimensions 224 x 148 x 65 mm (8.8 x 5.8 x 2.5 in) Installation Wall mounting (standard), DIN rail mounting (optional), pole mounting (optional) • Environmental Limits Operating Temperature -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5% to 100% (non-condensing) • Power Requirements Input Voltage 12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant) Connector M12 connector with A-coding Power Consumption 12 to 48 VDC, 890mA (max.) Reverse Polarity Protection Present • Standards and Certifications Safety UL 60950-1, EN 60950-1 Hazardous Location UL/cUL Class I Division 2, ATEX Zone 2 EMC EN 301 489-1/17, FCC Part 15 Subpart B, EN 55022/55024 Radio EN 300 328, EN 301 893, DSPR (Japan), FCC ID SLE-WAPN001 Note Please check Moxa’s website for the most up-to-date certification status. • Reliability MTBF (mean time between failures) 367,406 hrs • Warranty Warranty Period 5 years | |
