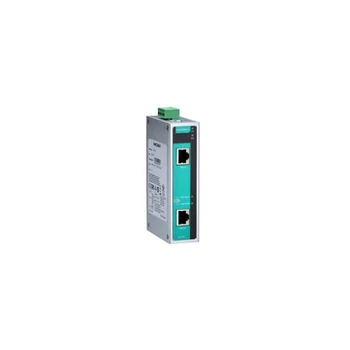

MOXA INJ-24A Gigabit High-power PoE+ injector, max. output of 36W/60W @24 or 48VDC by 2-pair/4-pair
122.810 Ft
(96.701 Ft + ÁFA)
| Cikkszám: | INJ-24A |
| Gyártó: | MOXA |
| Elérhetőség: | Érdeklődjön! Ár/készlet eltérés! |
| • Technology Standards IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) • Interface RJ45 Ports 10/100/1000BaseT(X) for PoE OUT and DATA IN PoE Pinout Default: V+, V+, V-, V- for pin 4, 5, 7, 8 (Midspan, MDI, Mode B) Custom DIP switch setting: V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A) LED Indicators P1, P2, 802.3af/at, 4-pair • Power Requirements Input Voltage 24/48 (20 to 60 V) VDC, redundant dual inputs Input Current Max. 3.72A @ 24 VDC (high power 4-pair mode) Overload Current Protection Present Connection 1 removable 4-contact terminal block Reverse Polarity Protection Present • Physical Characteristics Housing Metal, IP30 protection Dimensions 115 × 30.3 × 78.8 mm (4.53 x 1.19 x 3.10 in) Weight 245 g Installation DIN-rail mounting, wall mounting (with optional kit) • Environmental Limits Operating Temperature Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) • Standards and Certifications Safety UL 508 EMI FCC Part 15 Subpart B Class A, EN 55022 Class A EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Vibration IEC 60068-2-6 Note Please check Moxa’s website for the most up-to-date certification status. • MTBF (mean time between failures) Time 2,407,739 hrs Database Telcordia (Bellcore), GB • Warranty Warranty Period 5 years | |
