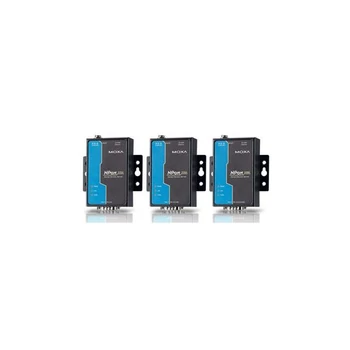

MOXA NPort 5130A 1 port device server, 10/100M Ethernet, RS-422/485, DB9 male, 15KV ESD, 0.5KV seria
60.907 Ft
(47.958 Ft + ÁFA)
| Cikkszám: | NPORT-5130A |
| Gyártó: | MOXA |
| Elérhetőség: | Érdeklődjön! Ár/készlet eltérés! |
| • Ethernet Interface Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45 Magnetic Isolation Protection 1.5 kV built-in • Serial Interface Number of Ports 1 Serial Standards NPort 5110A: RS-232NPort 5130A: RS-422/485NPort 5150A: RS-232/422/485 Connector DB9 male Serial Line Protection 15 kV ESD protection for all signals, Level 1 Surge, EN61000-4-5 RS-485 Data Direction Control ADDC® (automatic data direction control) Pull High/Low Resistor for RS-485 1 kΩ,ω,?, 150 kΩ,ω,? • Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF Baudrate 50 bps to 921.6 kbps • Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND • Software Network Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2 Configuration Options Web Console (with new Quick Setup), Serial Console (NPort 5110A/5150A only), Telnet Console, Windows Utility Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x • Physical Characteristics Housing Metal Weight 340 g Dimensions Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) • Environmental Limits Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) Altitude Up to 2000 m Note Please contact Moxa if you require products guaranteed to function properly at higher altitudes. • Power Requirements Input Voltage 12 to 48 VDC Power Consumption NPort 5110A: 82.5 mA @ 12 V, 47.3 mA @ 24 VNPort 5130A: 89.1 mA @ 12 V, 49.5 mA @ 24 VNPort 5150A: 92.4 mA @ 12 V, 52.8 mA @ 24 V • Standards and Certifications Safety UL 60950-1, EN 60950-1 EMC CE, FCC EMI EN 55022 Class A, FCC Part 15 Subpart B Class A EMS EN 55024 Power Line Protection EN 61000-4-4(EFT) Level 2,EN 61000-4-5(Surge) Level 3 • Reliability Automatic Reboot Trigger Built-in WDT (watchdog timer) MTBF (mean time between failures) 2,231,530 hrs • Warranty Warranty Period 5 years | |
