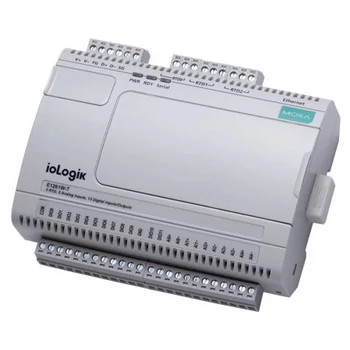

MOXA ioLogik E1261W-T Ethernet remote IO with 12 DIOs, 5 AIs, 3 RTDs, -4075°C operating temperature
308.618 Ft
(243.006 Ft + ÁFA)
| Cikkszám: | IOLOGIK-E1261W-T |
| Gyártó: | MOXA |
| Elérhetőség: | Érdeklődjön! Ár/készlet eltérés! |
| • Inputs and Outputs RTD Inputs 3 channels Analog Inputs 5 channels Configurable DIOs 12 channels Isolation 3k VDC or 2k Vrms • RTD Input Resolution 16 bits Input Type -100, -200 to 850°C Accuracy • ±0.1% FSR @ 25°C• ±1% FSR @ -40 and 75°C Sampling Rate 12 samples/sec (all channels) Resistance 625k ohms (min.) • Analog Input Type Differential input Resolution 16 bits I/O Mode Current Input Range 4 to 20 mA Accuracy • ±0.1% FSR @ 25°C• ±1% FSR @ -40 and 75°C Sampling Rate 12 samples/sec (all channels) Built-in Resistor for Current Input 120 ohms • Digital Input Sensor Type Wet Contact (NPN or PNP), Dry Contact I/O Mode DI or Event Counter Dry Contact • On: short to GND• Off: open Wet Contact (DI to GND) • On: 0 to 3 VDC• Off: 10 to 30 VDC Common Type 12 points per COM (Configurable DIOs) • Digital Output Type Sink I/O Mode DO or pulse output Over-Voltage Protection 45 VDC Over-Current Protection 400 mA (typical) Current Rating Max. 200 mA per channel • LAN Ethernet 1 10/100 Mbps switch port, RJ45 Protection 1.5 kV magnetic isolation Protocols Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP • Power Requirements Power Input 24 VDC nominal, 12 to 36 VDC • Physical Characteristics Wiring I/O cable max. 14 AWG • Environmental Limits Operating Temperature -40 to 75°C (-40 to 140°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) • Serial Communication Interface Data+, Data-, GND (3-contact terminal block) Serial Line Protection 15 kV ESD for all signals • Serial Communication Parameters Parity None Data Bits 8 Stop Bits 1 Flow Control None Baudrate 1200 bps to 115,200 bps Protocols Modbus RTU • Warranty Warranty Period 5 years | |
