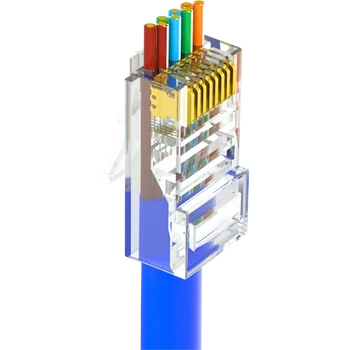

WALISEC RJ45-P6U csatlakozó - 100db/csomag

2.761 Ft (2.174 Ft + ÁFA)

Cikkszám:

RJ45-P6U

Gyártó:

Elérhetőség:

Külső raktáron

Connector Type
Category	Cat 6
Type	8P8C (Eight Position, Eight Contact)
Shielding	Unshielded

Material
Housing Material	Polycarbonate
Contact Material	Copper
Contact Surface Material	Gold Plating on Nickel Barrier
Gold Plating Thickness	3U (3μin or 0.0762 µm)

Electrical Properties
Voltage/Current Rating	125 VAC / 1.5 A
Insulation Resistance	≥ 500 MΩ
Contact Resistance	≤ 20 mΩ
Dielectric Withstand Voltage	1500 V DC/AC Peak

Mechanical Properties
Durability	≥ 1250 mating cycles
Wire Gauge	0.85 mm ≤ O ≤ 1.1 mm

Environment
Operating Temperature	-40°C to 70°C
Operating Humidity	RH 10% to 90% (non-condensing)
Storage Temperature	-40°C to 80°C
Storage Humidity	RH 5% to 96% (non-condensing)

General
Dimension	23x12x8 mm (LxWxH)
Net Weight	1.5 g
