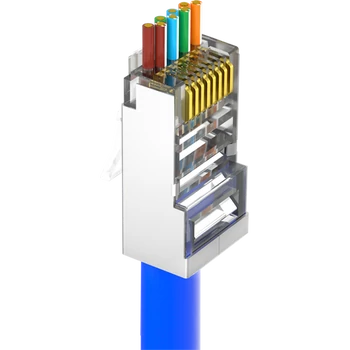

Connector Type
Category
Cat 6
Type
8P8C (Eight Position, Eight Contact)
Shielding
Shielded
Material
Housing Material
Polycarbonate
Shielding Material
Brass with nickel plating
Contact Material
Copper
Contact Surface Material
Gold Plating on Nickel Barrier
Gold Plating Thickness
3U (3μin or 0.0762 µm)
Electrical Properties
Voltage/Current Rating
125 VAC / 1.5 A
Insulation Resistance
≥ 500 MΩ
Contact Resistance
≤ 20 mΩ
Dielectric Withstand Voltage
1500 V DC/AC Peak
Mechanical Properties
Durability
≥ 1250 mating cycles
Wire Gauge
0.85 mm ≤ O ≤ 1.1 mm
Environment
Operating Temperature
-40°C to 70°C
Operating Humidity
RH 10% to 90% (non-condensing)
Storage Temperature
-40°C to 80°C
Storage Humidity
RH 5% to 96% (non-condensing)
General
Dimension
23x12x8 mm (LxWxH)
Net Weight
2.2 g
