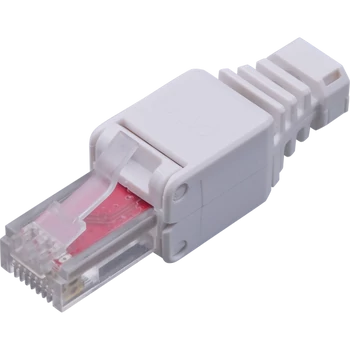

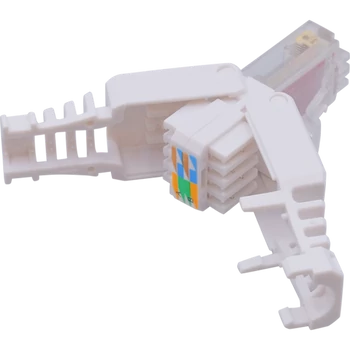

Connector Type
|
|
|
Category
|
Cat 6
|
|
Type
|
8P8C (Eight Position, Eight Contact)
|
|
Shielding
|
UTP (Unshielded Twisted Pair)
|
|
|
|
|
Material
|
|
|
Housing Material
|
Polycarbonate
|
|
Contact Material
|
Copper
|
|
Contact Surface Material
|
Gold Plating on Nickel Barrier
|
|
Gold Plating Thickness
|
50U (50μin or 1.27 µm)
|
|
|
|
|
Electrical Properties
|
|
|
Voltage/Current Rating
|
125 VAC / 1.5 A
|
|
Insulation Resistance
|
≥ 500 MΩ
|
|
Contact Resistance
|
≤ 20 mΩ
|
|
Dielectric Withstand Voltage
|
750 V DC/AC Peak
|
|
|
|
|
Mechanical Properties
|
|
|
Durability
|
≥ 1250 mating cycles, ≥ 250 termination cycles
|
|
Wire Diameter
|
ODO ≤ 6.6 mm
|
|
|
|
|
Environment
|
|
|
Operating Temperature
|
-40°C to 70°C
|
|
Operating Humidity
|
RH 10% to 90% (non-condensing)
|
|
Storage Temperature
|
-40°C to 80°C
|
|
Storage Humidity
|
RH 5% to 96% (non-condensing)
|
|
|
|
|
General
|
|
|
Dimension
|
53x18x15 mm (LxWxH)
|
|
Net Weight
|
6.1 g
|
