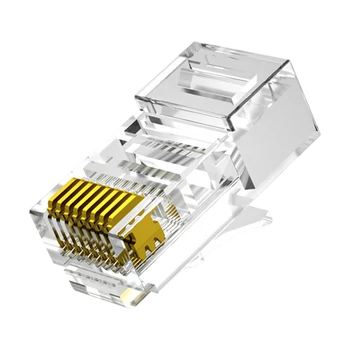

WALISEC RJ45-5EU csatlakozó - 100db/csomag

2.586 Ft (2.036 Ft + ÁFA)

Cikkszám:

RJ45-5EU

Gyártó:

Elérhetőség:

Külső raktáron

Connector Type
Category	Cat 5e
Type	8P8C (Eight Position, Eight Contact)
Shielding	Unshielded

Material
Housing Material	Polycarbonate
Contact Material	Copper
Contact Surface Material	Gold Plating on Nickel Barrier
Gold Plating Thickness	1U (1μin or 0.0254µm)

Electrical Properties
Voltage/Current Rating	125 VAC / 1.5 A
Insulation Resistance	≥ 500 MΩ
Contact Resistance	≤ 20 mΩ
Dielectric Withstand Voltage	1500 V DC/AC Peak

Mechanical Properties
Durability	≥ 1000 mating cycles
Wire Gauge	0.85 mm ≤ O ≤ 1.1 mm

Environment
Operating Temperature	-40°C to 70°C
Operating Humidity	RH 10% to 90% (non-condensing)
Storage Temperature	-40°C to 80°C
Storage Humidity	RH 5% to 96% (non-condensing)

General
Dimension	23x12x8 mm (LxWxH)
Net Weight	1.5 g

Diagram
