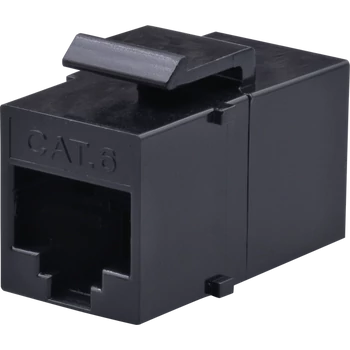

Connector Type
|
|
|
Category
|
Cat 6
|
|
Connector
|
2x RJ45(8P8C) Female Ports
|
|
Shielding
|
Unshielded
|
|
|
|
|
Material
|
|
|
Housing Material
|
Polycarbonate
|
|
Contact Material
|
Phosphor Bronze with Nickel Plating, thickness = 0.3 mm
|
|
Contact Surface Material
|
Gold Plating, thickness = 3U (3μin or 0.0762 µm)
|
|
PCB Material
|
FR-4, thickness = 1.6 mm
|
|
|
|
|
Electrical Properties
|
|
|
Voltage/Current Rating
|
125 VAC RMS / 1.5 A
|
|
Insulation Resistance
|
≥ 1000 MΩ at 500 VDC
|
|
Contact Resistance
|
≤ 100 mΩ
|
|
Dielectric Strength
|
750 VAC RMS, 60 Hz, 1 minute
|
|
|
|
|
Mechanical Properties
|
|
|
RJ45 Jack
|
≥ 750 mating cycles
|
|
Wire Gauge
|
AWG 22-26
|
|
Wiring Scheme
|
T568A/T568B
|
|
|
|
|
Environment
|
|
|
Operating Temperature
|
-25°C to 70°C
|
|
Operating Humidity
|
RH 10% to 90% (non-condensing)
|
|
Storage Temperature
|
-40°C to 85°C
|
|
Storage Humidity
|
RH 5% to 96% (non-condensing)
|
|
|
|
|
General
|
|
|
Dimension
|
14.6 x 19.6 x 29.3 mm (WxHxD)
|
|
Net Weight
|
4.5 g (dust cap included)
|
|
|
|
|
Diagram
|
unit: mm
|
