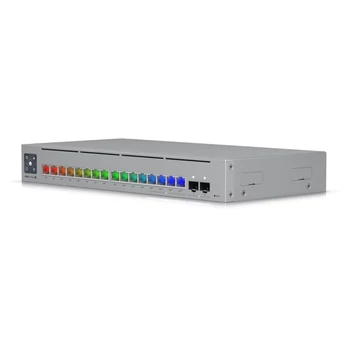

UBIQUITI USW-Pro-Max-16-PoE UniFi Switch Pro Max 16 PoE, 180W
181.925 Ft
(143.248 Ft + ÁFA)
| Cikkszám: | USW-PRO-MAX-16-POE |
| Gyártó: | Ubiquiti |
| Elérhetőség: | Érdeklődjön! Ár/készlet eltérés! |
| UniFi Switch Pro Max 16 PoE is a reliable manageable 2.5 Gigabit L3 Switch with PoE, switching capacity 84 Gbps, (4) 2.5 Gigabit (support 802.3af/at/bt PoE) + (12) Gigabit LAN (802.3af/at PoE) ports, two SFP+ (1/10Gbps) bays and a total PoE budget of 180W. In addition to the standard equipment, the Switch also has a 1.3" touchscreen for providing system information, temperature, port statistics and much more. The Switch can be powered via a 54V DC connector with an external power source with a power of 210 W. Etherlighting colored lighting of ports indicating port location, speed or VLAN indication is new. Key Features (4) 1G/2.5 Gbps LAN (802.3af/at/bt PoE) (12) 10/100/1000 Mbps LAN (802.3af/at PoE) (2) 1/10G SFP+ slots PoE budget 180W - PoE on all Ethernet ports 1.3" touch screen Etherlighting - backlighting of ports Supported in UniFi Network since version 8.1.127 Management via UniFi Network The UniFi switch does not have web management but is managed centrally using the UniFi Network with support for the UniFi mobile app and offers an extensive set of advanced switching protocols and L2 or L3 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile apps allow administrators to configure and monitor virtually all switch functions in a graphical user interface from anywhere. Package contents Device Power adapter - 210W Power cord Mounts for 19" rack Screws, dowels Connectors and interfaces LAN speed (12) 10/100/1000Mbps + (4) 1000/2500Mbps Optical interfaces (2) 1G/10Gbps Other features Touchscreen, Etherlighting Power Power type DC connector PoE type PoE-Out (only) PoE-Out standards 802.3af, 802.3at, 802.3bt PoE Out ports 16 PoE budget [W] 180 Max. power consumption [W] 30 Power via connector/terminal 54V DC Physical characteristics Design Rackmount, On the wall, Desktop Fans Without fan Chassis design Metal Buttons Reset Operating temperature [°C] -5 up to 40 Depth [mm] 160 Height [mm] 44 Width [mm] 325 General Jumbo frame [Bytes] 9000 MAC address table 16000 Packet forwarding rate [Mpps] 62,5 Switchning capacity [Gbps] 84 Software Management UniFi Network Features VLAN, DHCP snooping, L3 Default IP address Dynamic from DHCP, 192.168.1.20 Default login and password ubnt / ubnt | |
